Constant Temperature Test Chamber, high temperature chamber
Constant Temperature Test Chamber, high temperature chamber

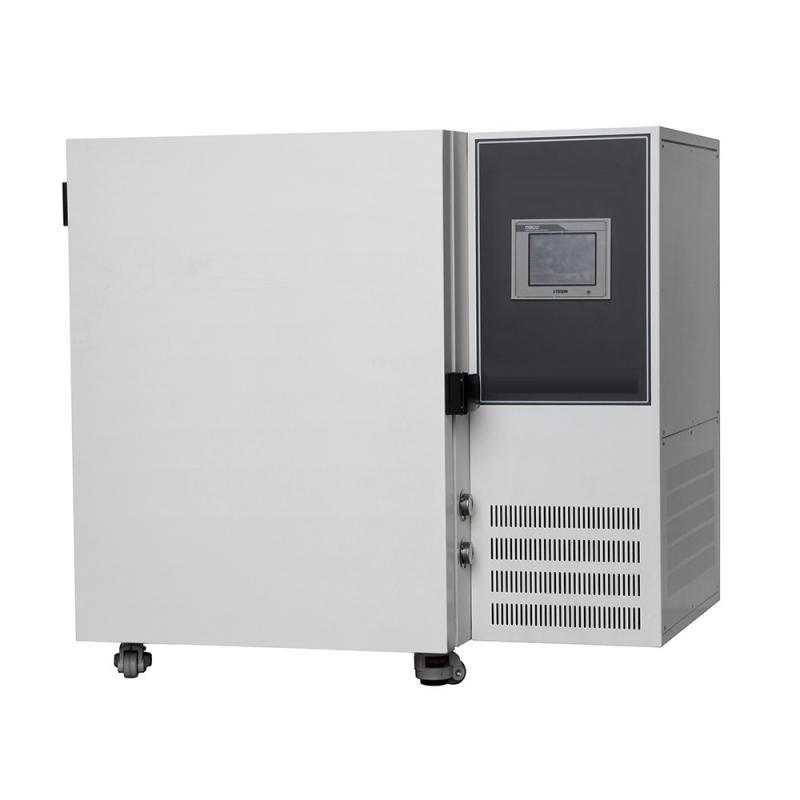

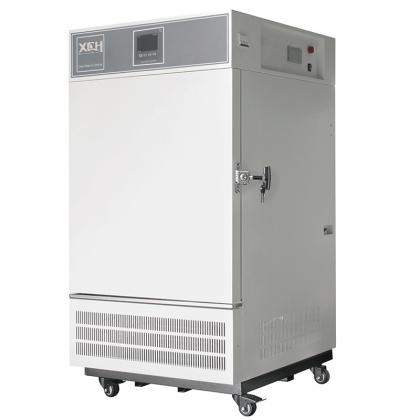

Constant High Temperature Test Chamber

The Constant High Temperature Test Chamber are used for material performance testing in different environments, such as heat, cold, humidity, heat and humidity. Designed to provide precise and diverse environments for IEC60068- compliant testing, production testing, and laboratory testing.


Model: 100GW-1000GW/GWH

TEMP Range: 10~200℃

Fluctuation: ＜±0.5℃

Deviation:＜±2.0℃(＜200℃)
Deviation:＜±3.0℃(200℃~300℃)


  • Item NO.:

    100GW-1000GW/GWH

  • Product Origin:

    China
Inquire now
  • Product Detail

Constant High Temperature Test Chamber


The high temperature chamber is mainly used to are used in high-precision testing environments for food processing, chemicals, pharmaceuticals and product durability.

Suitable for high temperature test of electrical and electronic products and materials


Key Features:


Specifications:

TEMP Range: 10~200℃

Fluctuation: ＜±0.5℃

Deviation: ＜±2.0℃(＜200℃)
Deviation: ＜±3.0℃(200℃~300℃)

Temperature Fluctuation ≤ ±0.5℃

Temperature Deviation ≤ ±2.0℃（@200℃）
Installed Power: AC220V±10% 50HZ（Above 500L:AC380V±10%)


Structure&Material
Adopt the latest structure design, good temperature uniformity inside the chamber.
Imported executive components ensure stable and reliable performance.
The original imported temperature controller,High temperature control accuracy.
Low noise motor and stainless steel multi - wing centrifugal wheel are used.

The circuit control panel and other components are fixed in a position convenient for inspection and maintenance.


Safety Device:

Fan overheating protection，Independent overtemperature protection alarm system.

Sound-light alarm: Temperature upper and lower limit deviation alarm



Model & Parameters:


MODEL TEMP CONTROL RANGE CAPACITY INTER DIMEN
W×D×H(mm) 		EXTER DIMEN
W×D×H(mm) 		POWER TRAYS
XCH-100GWH RT+10 ～ 200 100L  450×450×450  1100×700×800 2.0KW 2
XCH-250GWH
 RT+10 ～ 200
 250L 600×600×700
 1250×850×1000
 2.5KW 2
XCH-500GWH
 RT+10 ～ 200
 500L 800×700×900
 1450×1200×1200
 3.5KW 2
XCH-1000GWH RT+10 ～ 200 1000L 1000×1000×1000 1650×1650×1300 4.0KW 4


Advantages:


Remote control system to execute programs remotely

Ensuring product quality, safety and reliability across multiple industries.
Programmable color touch screen controller
Security alarm system


Want to know about this product?

SEND A MESSAGE

If you are interested in our products and want to know more details, please leave a message here,we will reply you as soon as we can.

Related Products

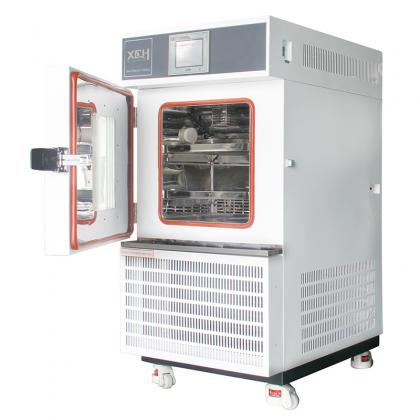

Temperature Test Chamber Alternating High and Low Temperature Test Chamber
