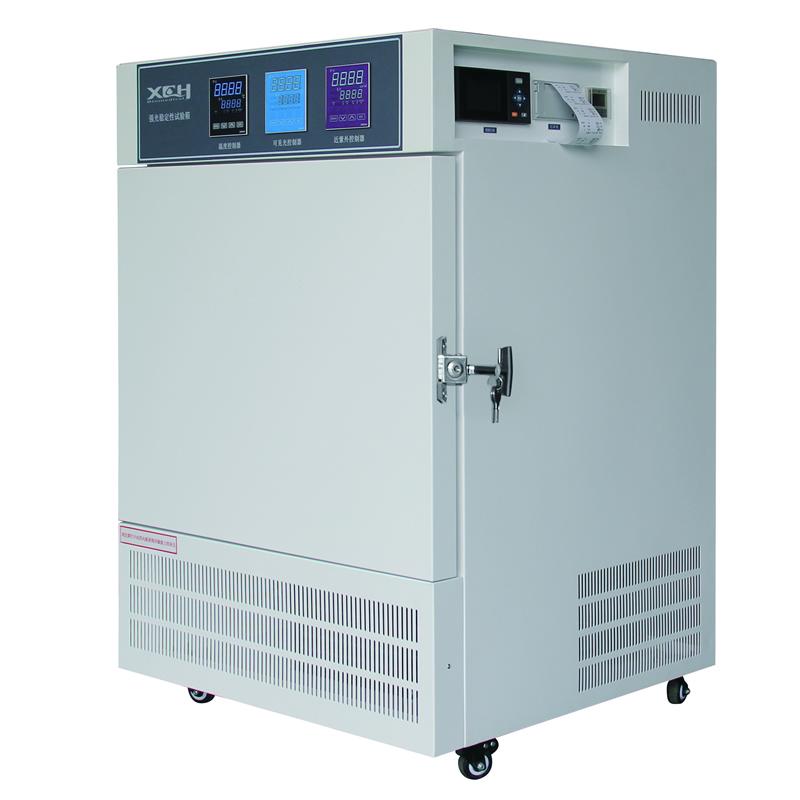

XCH-TPS Medicine Strong-Photo Stability Test Chamber is designed to provide a very high-intensity lighting system to comply with ICH guidelines, suitable for any light stability conditions.
Model: 150TPS~500TPS
TEMP Range: 15~50℃
Fluctuation: ＜±0.5℃
TEMP Deviation: ＜ ±2.0℃(SAME LEVEL)
Light Range: Visible light range: 100 ~ 8000LUX Total illumination should not be less than 1.2 x 10^6Lux·hr
UV range: NUV range: 0.84 ~ 5w/m squared; The near-UV energy is no less than 200w•hr/㎡
UV wavelength: NUV wavelength: 320 ~ 400nm
Item NO.:
150TPS-500TPSProduct Origin:
ChinaMedicine Strong-Photo Stability Test Chamber
Equipped with visible and near ultraviolet lamp tube,It can independently control the type of light source,And it also can print and record the visible light and near ultraviolet radiation in real time.Visible light and near ultraviolet can be directly set,automatically adjusted and precisely controlled
Key Features:
Capacity:
Min:150L
Max:500L
Specifications:
Temperature Fluctuation ≤ ±1.0℃
Temperature Deviation ≤ ±2.0℃（Same layer）
Illumination Control: The total illumination is not less than 1.2×106 Lux·hr，Near ultraviolet energy is not less than 200w·hr/m2
Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃
Structure system:Light Source Design: Top light source design, the sample of different position of shelf has good uniformity of receiving light source irradiation
Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance
Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean,the out shell is plastic sprayed steel plate
Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise.
Control System: The imported digital display illuminance controller,High control accuracy.
Safety device:
compressor overheat and overpressure overload protection, Fan overheat protection.
Dual Protection: Equipped with independent overtemperature protection system, can automatically cut off the power supply
Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard
Meet a criterion: Meet ICHQ1B、Chinese Pharmacopoeia 2020 edition
SMS alarm: Optional.
Stability Chamber Specification:
|
MODEL |
TEMP RANGE |
CAPACITY(L) |
INTERNAL DIMEN(mm) W×D×H |
EXTERNAL DIMEN(mm) W×D×H |
POWER(KW) |
TRAY |
SystemIllumination range |
Remarks |
|
XCH-150TPS |
15～50℃ |
150 |
650×490×500 |
800×790×1250 |
1.0 |
1 |
Visible light: 100 ～ 8000Lux Near UV: 0.84 ～ 5w/m2 |
1*independent light source system
1*printing storage system
|
|
XCH-150TPS |
15～50℃ |
250 |
600×500×830 |
760×870×1650 |
1.5 |
2 |
2*independent light source system
2*printing storage system
|
|
|
XCH-150TPS |
15～50℃ |
500 |
680×680×1070 |
840×1050×1850 |
2.2 |
3 |
3*independent light source system
Print and store 3 layers of data
|
|
|
XCH-150LTPS |
2～30℃ |
250 |
600×500×830 |
760×870×1650 |
1.5 |
1 |
Visible light: |
1*independent light source system
1*printing storage system
|
|
XCH-150LTPS |
2～30℃ |
500 |
680×680×1070 |
840×1050×1850 |
2.2 |
2 |
2*independent light source system
Print and store 2 layers of data
|
Advantages:
No maintenance.No pollution source
High sensitivity, low annual drift
High precision
Safety,with alarm system
