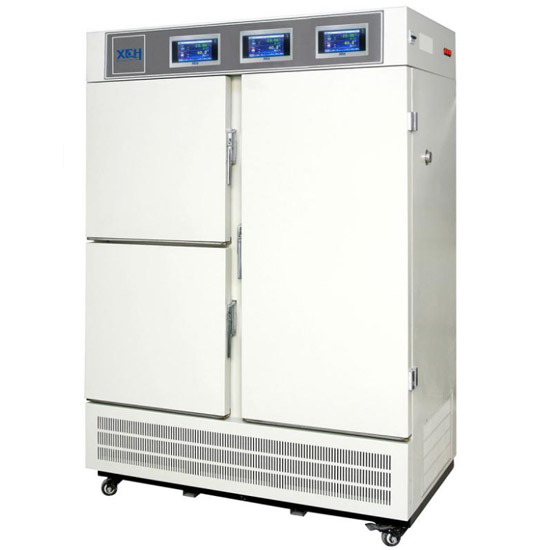

The Triple Case Medicine Stability Testing Chamber, adopts quality imported components and manufacturing process, with stable and reliable performance, independent control of three boxes and temperature and humidity control of A, B and C boxes.
Model: 430SD~830SD/CSD
TEMP Range: 15~65℃
TEMP Fluctuation: ＜±0.5℃
TEMP Deviation: ＜ ±1.0℃
Humidity Range: 20 ～ 95%
Humidity Deviation:＜ ±3%RH
Capacity: 430L~830L
Item NO.:
430SD~830SD/CSDProduct Origin:
ChinaTriple Case Medicine Stability Testing Chamber
Three case independent control，SD series three boxes are temperature and humidity chamber；CSD series，A chamber with temperature、visible light、near ultraviolet three functions，B/C chamber only control and record temperature and humidity. Widely used for research on the pharmaceutical industry,Medical industry,Biotechnology industry and other life science-related industries.
Key Features:
Specification:
Temperature Fluctuation ≤ ±0.5℃
Temperature Deviation ≤ ±1.0℃
Humidity Fluctuation ≤ ±3%RH
Humidity Deviation ≤ ±3%RH
Installed power：AC 220V±10% 50HZ
Environment temperature: +5~35℃
CSD series: A with function of illumination, Illumination Range：100 ～ 8000Lux，Near Ultraviolet Range 0.84 ～ 5w/m2，Illuminance deviation 4500±500Lux
Stucture Design:
Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber
Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance
Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean
Refrigerating System: The imported fully enclosed industrial compressor, longlife, low noise
Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free
Control System: Three sets color touch screen temperature and humidity controller, High control accuracy, With three levels permission,audit trail
Illumination System: Equipped with illumination sensor,direct illumination display, equipped with illumination storage and printing system
Data Record: Equipped with data collection system conform to GMP requirements,Three sets Needle micro printer and USB output port as standard
Safety Device:
Compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection
Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply
Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.
Meet a criterion: Meet ICHQ1A(R2)、Q1B、Chinese Pharmacopoeia 2020 edition.
SMS alarm: Optional
Stability Chamber Specification:
|
Model |
Temp Range(℃) |
Humidity Range |
Capacity(L) |
INTERNAL DIMEN(mm) W×D×H |
EXTERNAL DIMEN(mm) W×D×H |
Power(KW) |
TRAY |
Remark |
|
XCH-430SD |
15 ～ 65 |
20 ～ 95% |
100 |
480×420×500 |
1320×780×1930 |
3.5 | 1 |
A Box(Temperature + Humidity) |
|
100 |
480×420×500 |
3.5 | 2 |
B Box(Temperature + Humidity) |
||||
| 230 |
480×420×1100 |
3.5 | 4 |
C Box(Temperature + Humidity) |
||||
|
XCH-830SD |
20 ～ 95% |
200 |
600×600×600 |
1520×1060×1970 |
4.0 | 1 |
A Box(Temperature + Humidity) |
|
| 200 |
600×600×600 |
4.0 | 2 |
B Box(Temperature + Humidity) |
||||
| 430 |
600×600×1200 |
4.0 | 4 |
C Box(Temperature + Humidity) |
||||
|
XCH-430CSD |
15 ～ 65 |
N/A |
100 |
480×420×500 |
1320×780×1930 |
3.5 | 1 |
A Box(temperature + visible light + near UV) |
|
20 ～ 95% |
100 |
480×420×500 |
3.5 | 2 |
B Box(Temperature + Humidity) |
|||
|
20 ～ 95% |
230 |
480×420×1100 |
3.5 | 4 |
C Box(Temperature + Humidity) |
|||
|
XCH-830CSD |
15 ～ 65 |
N/A |
200 |
600×600×600 |
1520×960×1990 |
4.0 | 1 |
A Box(temperature + visible light + near UV) |
|
20 ～ 95% |
200 |
600×600×600 |
4.0 | 2 |
B Box(Temperature + Humidity) |
|||
|
20 ～ 95% |
430 |
600×600×1200 |
4.0 | 4 |
C Box(Temperature + Humidity) |
Remark: CSD series A equipped with temperature,visible light and NUV light three functions,Illumination measurement standard with visible and near ultraviolet sensors.Visible and near ultraviolet values are automatically printed and stored;Visible Range: 100 ～ 8000Lux,4500±500Lux，The total illumination of the light test shall not be less than 1.2×106 Lux·hr; Near ultraviolet range: 0.84 ～ 5w/ m2 ,Near ultraviolet energy shall not be less than 200w·hr/m2 .
